Product Details:
| Place of Origin: | Industrial Chiller Factory |
| Brand Name: | AODE |
| Certification: | ISO, CE, ROHS |
| Model Number: | AC-190WS |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pc |
|---|---|
| Price: | $ |
| Packaging Details: | Protective/air bubble film, Wooden case. As client’s require |
| Delivery Time: | Within 20days after receiving |
| Payment Terms: | 30% T/T in advance, 70% balanc |
| Supply Ability: | 500pcs/month |

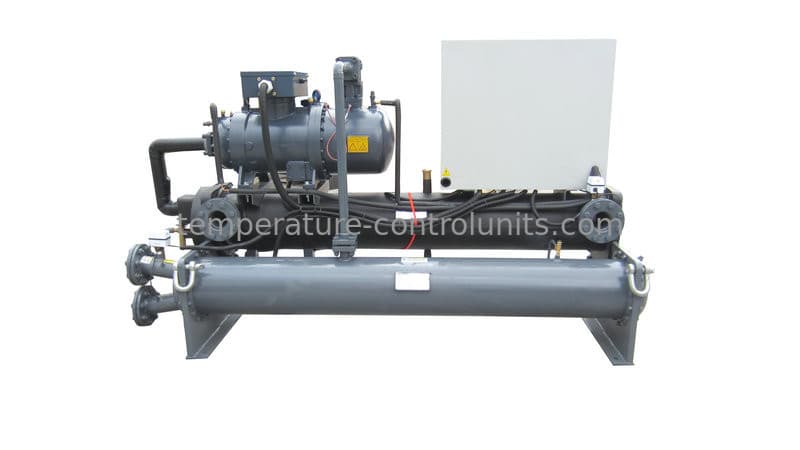

35 Degree Water Cooled Screw Chiller With CE / ROHS Certificate from AODE is a powerful and reliable cooling system designed for industrial applications like plastic injection molding and printing. With a high refrigerating capacity of 219,300 Kcal/h and energy-efficient performance, this chiller offers precise temperature control (7-35℃) with an accuracy of ±2℃. Equipped with a semi-enclosed screw-type compressor and certified with CE and ISO, this water-cooled chiller ensures superior performance, safety, and easy maintenance, making it an ideal choice for demanding cooling needs.
| Product Name: | Water Cooled Screw Chiller | Brand Name: | AODE |
|---|---|---|---|
| Application: | Plastic Injection Molding, Pringting | Certification: | CE, ISO |
| Compressor Type: | Semi-enclosed Screw-type | Power Input: | 56KW |
| Power Supply: | 3N-50HZ-380V | Temperature Range: | 7-35℃ |
| Theory: | Water Cooled | ||
| High Light: | Water Cooled Screw Chiller, 35 Degree Water Cooled Screw Chiller, Water Cooled Screw Chiller With CE / ROHS Certificate | ||
Functions:
| Applications:
|
ITEM | UNIT | AC-190WS | |
Refrigerating capacity | Kcal/h | 163400 | |
KW | 190 | ||
Input water | KW | 45 | |
Maximum Running Current | A | 76 | |
Energy adjust range | % | 100-75-50-25-0 | |
Power supply | 3N-50HZ-380V | ||
R22 Refrigerant | Filling Volume | kg | 35 |
Control mode | Thermostatic External pressure expansion valve | ||
Compressor | Model | Semi-enclosed screw-type | |
Power | Kw | 45 | |
Evaporator | Model | Shell and Tube | |
Chilled water flow | M3/h | 36.6 | |
Water resistance | Kpa | 42 | |
Water inlet/outlet diameter | DN | 80.0 | |
Condenser | Model | Shell and Tube | |
Chilled water flow | M3/h | 46.1 | |
Water resistance | Kpa | 48 | |
Water inlet/outlet diameter | DN | 80.0 | |
Protecting equipment | Over/low voltage switch, antifreeze switch, safety valve, overload protection devices, coil overheating protector, temperature automatically switch, reverse phase protector | ||
Size(L×W×H) | mm | 2800×750×1800 | |
Weight | kg | 1000 | |
Running Weight | Kg | 1200 | |
Compressor Type: Semi-enclosed screw-type for efficient, reliable performance.
Refrigerating Capacity: High capacity of 219,300 Kcal/h to handle demanding cooling applications.
Control Precision: Temperature control with ±2℃ precision.
Energy Saving: Save up to 30% in energy costs with high-efficiency evaporators and condensers.
Protective Features: Equipped with overload protection, anti-frost switch, safety valve, and more for safe operation.
High-quality Components: Imported components from global brands like OMRON, FUJI, Danfoss, ABB, and LG ensure durability and reliability.
Compressor Power: Options for different compressor sizes to meet specific cooling requirements.
Temperature Control: Customizable temperature settings (within 7-35℃) for precise control in different environments.
Refrigerant Type: Customization of refrigerants (such as R22) depending on environmental standards and customer needs.
Automation: Optional RS485 communication function for remote monitoring and automated management.
Material Options: Customized evaporators, condensers, and heat exchangers for specific industries or applications.
Installation:
| Usage:
|
Regularly check high/low pressure switches, safety valves, and anti-frost protection to ensure the unit operates smoothly.
Follow the user manual for troubleshooting and safety tips.
1. What is the cooling capacity of the 35°C Water Cooled Screw Chiller?
The chiller offers a cooling capacity of 219,300 Kcal/h, ideal for large-scale industrial applications.
2. What is the temperature control range?
The chiller offers precise temperature control between 7-35℃ with an accuracy of ±2℃.
3. How energy-efficient is this water-cooled screw chiller?
The chiller features high-efficiency components that can reduce energy consumption by up to 30%.
4. What types of applications can this chiller be used for?
It's perfect for applications like plastic injection molding, printing, rubber presses, die casting, and chemical engineering.
5. What safety features are included?
The chiller includes multiple safety features such as high/low voltage protection, anti-frost protection, overload protection, and automatic fault display.
6. Can the chiller be customized for different applications?
Yes, the chiller can be customized for various cooling needs, including different compressor sizes, refrigerant types, and automated management options.
