Product Details:
| Place of Origin: | Air Chiler Manufacturer |
| Brand Name: | AODE |
| Certification: | ISO, CE, ROHS |
| Model Number: | AC-01A |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pc |
|---|---|
| Price: | $ |
| Packaging Details: | Protective/air bubble film, Wooden case. As client’s require |
| Delivery Time: | Within 20days after receiving |
| Payment Terms: | 30% T/T in advance, 70% balanc |
| Supply Ability: | 500pcs/month |

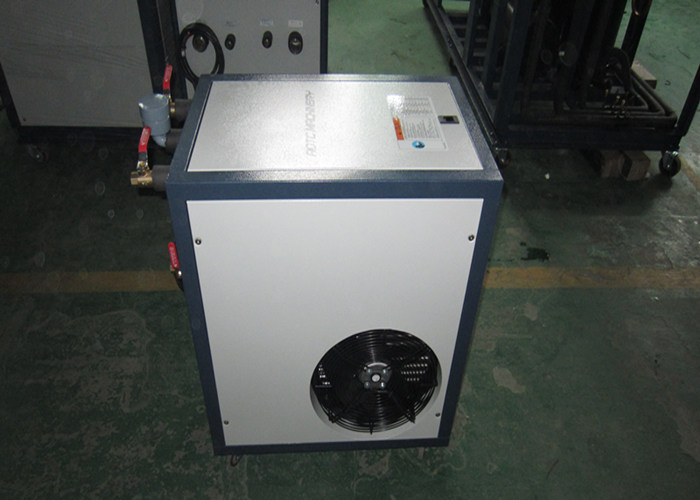

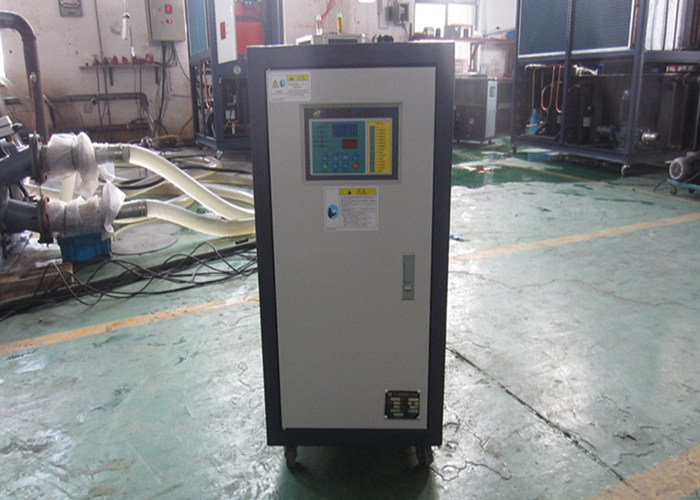

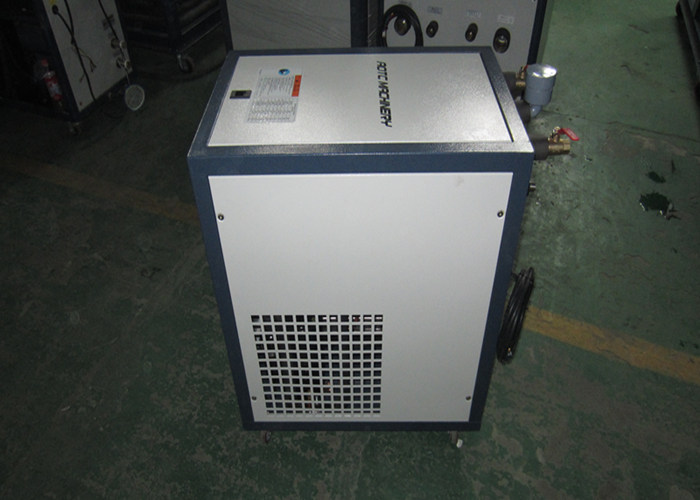

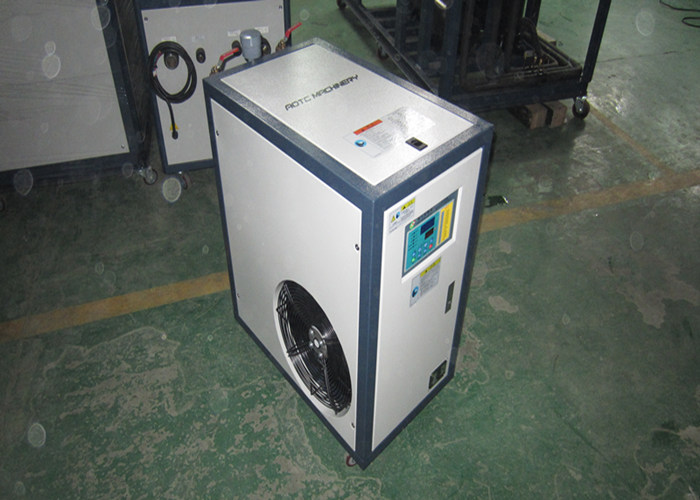

Injection Portable Air Cooled Chiller 2528Kcal/h 50HZ features a cooling capacity of 2528Kcal/h (50HZ) and utilizes a hermetic scroll or piston compressor. It is equipped with high/low pressure protection, overheating protection, and low water level & temperature alarms. The SUS304 stainless steel water tank prevents corrosion and leakage, while the high-efficiency evaporator and condenser help reduce energy consumption by over 30%. Electrical components from OMRON, FUJI, TE, LG, MOELLER, and SCHNEIDER ensure reliability. With RS485 remote management support (optional) and an intelligent control system, this chiller is easy to operate and maintain, making it ideal for injection molding, printing, rubber processing, chemical industries, and more.
| Product Name: | Portable Air Cooled Chiller | Brand Name: | AODE |
|---|---|---|---|
| Application: | Pringting, Rubber Presses, Extruder | Certification: | CE, ISO |
| Compressor Type: | Hermetic Scroll Or Piston | Power Supply: | 3N-380V 50HZ |
| Theory: | Air Cooled | ||
| High Light: | Portable Air Cooled Chiller, Injection Portable Air Cooled Chiller, 2528Kcal/h 50HZ Portable Air Cooled Chiller | ||
ITEM | UNIT | AC-01A | |
Cooling capacity | KW50HZ | 2.94 | |
Kcal/h 50HZ | 2528 | ||
Total input | KW | 1.31 | |
Maximum Running Current | A | 8 | |
Power supply | 1N-220V 50HZ | ||
Refrigerant | Name | R22 | |
Charge | Kg | 0.8 | |
Control Type | Capillary Tube | ||
Compressor | Type | Hermetic Rotary | |
Power | Kw | 0.75 | |
Air Flow | M3/h | 1000 | |
Chilled water | Flow | M3/h | 0.51 |
Tank | M3 | 0.028 | |
In/Out Pipe Size | G1/2” | ||
water Pump | Power | Kw | 0.375 |
Pressure | Kpa | 180 | |
Size(L×W×H) | mm | 600×400×940 | |
Weight | Kg | 60 | |
Features and Functions
| Core Selling Points
|
Industrial-grade cooling performance suitable for various applications
High cost-efficiency with reduced energy consumption
Easy operation & mobility, adaptable to different workspaces
Enhanced safety features minimize risks and maintenance costs
When to Choose a Portable Air Cooled Chiller?
When you need a flexible cooling solution that can be moved easily
If your facility lacks space for a water-cooled system
To reduce maintenance costs and avoid the need for professional upkeep
For energy-efficient cooling with lower operational expenses
Compressor Type: Scroll or piston
Control System: Microcomputer or PLC
Refrigerant Choices: R22, R410A, R134a
Remote Management: RS485 communication support
1. How does the Portable Air Cooled Chiller save energy?
It uses a high-efficiency evaporator and condenser to optimize energy consumption, reducing power usage by over 30%.
2. What industries is this Portable Air Cooled Chiller suitable for?
It is widely used in injection molding, printing, rubber processing, drying, and chemical industries, among others.
3. Is this chiller safe to operate?
Yes, it features high/low pressure protection, overheating protection, and low water level alarms, ensuring stable operation.
4. Does it support remote control?
Yes, it can be equipped with RS485 communication for remote monitoring and management.
5. Is this chiller suitable for small factories?
Yes, its compact design and easy installation make it perfect for small-scale industrial applications.
6. Can I customize the refrigerant type?
Yes, you can choose between R22, R410A, and R134a based on environmental and operational needs.
